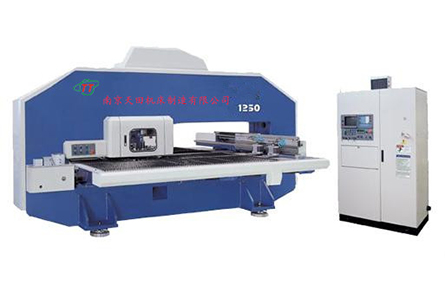

一、HRT系列數控高精度轉塔沖床適用于多種行業，以下是·HRT系列數控高精度轉塔沖床介紹：

1、結構原理

• 數控高精度轉塔沖床：具有轉塔結構，轉塔上安裝有多個不同形狀和尺寸的模具，常見有32刀頭，36刀頭，48刀頭等分布在A、B、C、D、E工位上，通過數控系統控制轉塔的旋轉和工作臺的移動，可自動更換模具并精確定位加工位置，實現多種不同形狀和尺寸的沖壓加工。

2、加工精度

• 數控高精度轉塔沖床：配備高精度的數控系統和定位裝置，能夠精確控制工作臺的移動和模具的定位，加工精度較高，可達到 ±0.1mm 甚至更高。適用于對精度要求較高的零件加工，如電子設備的精密外殼、汽車零部件等。

3、加工能力

• 數控高精度轉塔沖床：轉塔上可安裝多個模具，能夠在一次裝夾中完成多種不同形狀和尺寸的沖壓加工，可加工復雜的圖形和孔型，具有較強的靈活性和適應性。可以加工不同材質、不同厚度的板材，板材厚度一般在 0.5mm - 12mm 左右。

4、生產效率

• 數控高精度轉塔沖床：由于需要進行模具更換和定位等操作，單個沖壓動作的速度可能不如快速?zèng)_床快。但在加工復雜零件時，通過數控程序控制，能夠?qū)崿F(xiàn)自動化連續加工，減少了人工干預和模具更換時間，整體生產效率在加工復雜工件時較高。

• I. The HRT series CNC high-precision turret punch press is applicable to multiple industries. The following is an introduction to the HRT series CNC high-precision turret punch press:

• 1. Structural Principle

• The CNC high-precision turret punch press has a turret structure. Multiple molds of different shapes and sizes are installed on the turret. Commonly, there are 32 tool heads, 36 tool heads, 48 tool heads, etc., distributed on positions A, B, C, D, and E. Through the control of the rotation of the turret and the movement of the worktable by the numerical control system, the molds can be automatically replaced and the processing positions can be accurately positioned, enabling stamping processing of various shapes and sizes.

• 2. Processing Precision

• The CNC high-precision turret punch press is equipped with a high-precision numerical control system and positioning device. It can precisely control the movement of the worktable and the positioning of the molds, with relatively high processing precision, which can reach ±0.1mm or even higher. It is suitable for the processing of parts with high precision requirements, such as the precision casings of electronic devices and automotive components.

• 3. Processing Capacity

• For the CNC high-precision turret punch press, multiple molds can be installed on the turret. It can complete stamping processing of various shapes and sizes in one clamping. It can process complex graphics and hole patterns, with strong flexibility and adaptability. It can process plates of different materials and thicknesses. Generally, the thickness of the plates ranges from about 0.5mm to 12mm.

• 4. Production Efficiency

• For the CNC high-precision turret punch press, due to operations such as mold replacement and positioning, the speed of a single stamping action may not be as fast as that of a quick punch press. However, when processing complex parts, through the control of the numerical control program, automated continuous processing can be achieved, reducing manual intervention and mold replacement time, and the overall production efficiency is relatively high when processing complex workpieces

二、HRT系列數控高精度轉塔沖床適用范圍

• 電子電氣行業

• 機箱機柜：用于加工各類電子設備的機箱、機柜外殼，可在薄板上沖裁出各種形狀的安裝孔、散熱孔、通風孔等，以滿足設備內部元件的安裝和散熱需求。


• 電氣控制箱：對電氣控制箱的面板進行加工，沖制出按鈕孔、指示燈孔、儀表安裝孔等，保證面板的精度和美觀度，同時提高生產效率。

• 、汽車制造行業

• 車身結構件：能對汽車車身的各種結構件進行加工，如車門內板、發動機艙蓋內板、車架縱梁等，通過沖裁、沖孔等工藝，實現輕量化設計和精確的裝配尺寸要求。

• 汽車零部件：適用于加工汽車座椅骨架、安全帶固定點、剎車踏板等零部件，能夠在不同厚度的板材上進行高精度的沖壓加工，保證零部件的質量和性能。

• 2、機械制造行業

• 工業設備外殼：用于制造各類工業設備的外殼，如機床防護罩、空壓機外殼、風機外殼等，可根據設計要求沖制出各種形狀的輪廓和孔系，提高外殼的防護性能和外觀質量。

• 機械零部件：能加工各種機械零部件，如齒輪坯、法蘭盤、連接片等，通過高精度的沖壓工藝，保證零部件的尺寸精度和表面質量，為后續的加工和裝配提供良好的基礎。

• 建筑裝飾行業

• 金屬幕墻：對金屬幕墻的面板進行加工，沖制出各種形狀的裝飾孔、安裝孔，以及用于實現幕墻造型的特殊形狀，以滿足建筑外觀的設計要求。

• 天花板：可加工各種樣式的天花板，如沖孔吸音天花板、造型天花板等，通過沖床的高精度加工，保證天花板的平整度和孔型的一致性，提高裝飾效果。

• 日常用品行業

• 廚具：能對不銹鋼、鋁板等材質的廚具進行加工，如鍋具、餐具的沖壓成型，以及在廚具表面沖制出各種花紋、圖案或防滑結構等。

• 家具五金：適用于加工家具的合頁、拉手、腳輪等五金配件，通過沖壓工藝實現配件的精確成型和批量生產，提高生產效率和產品質量。

• The scope of application of the HRT series CNC high-precision turret punch press

• 1. Electronic and Electrical Industry

• Chassis and Cabinets: It is used to process the chassis and cabinet shells of various electronic devices. It can punch installation holes, heat dissipation holes, ventilation holes, etc. of various shapes on thin plates to meet the installation and heat dissipation requirements of internal components of the devices.

• Electrical Control Boxes: It processes the panels of electrical control boxes, punches button holes, indicator light holes, instrument installation holes, etc., ensuring the precision and aesthetic appearance of the panels, and at the same time improving production efficiency.

• 2. Automobile Manufacturing Industry

• Body Structural Components: It can process various structural components of automobile bodies, such as inner door panels, inner engine hood panels, frame longitudinal beams, etc. Through processes such as punching and blanking, it can achieve lightweight design and precise assembly dimension requirements.

• Automobile Parts: It is suitable for processing automobile parts such as seat frames, seat belt fixing points, brake pedals, etc. It can perform high-precision stamping processing on plates of different thicknesses, ensuring the quality and performance of the parts.

• 3. Mechanical Manufacturing Industry

• Industrial Equipment Shells: It is used to manufacture the shells of various industrial equipment, such as machine tool protective covers, air compressor shells, fan shells, etc. It can punch out contours and hole systems of various shapes according to design requirements, improving the protective performance and appearance quality of the shells.

• Mechanical Parts: It can process various mechanical parts, such as gear blanks, flanges, connecting pieces, etc. Through high-precision stamping processes, it ensures the dimensional accuracy and surface quality of the parts, providing a good foundation for subsequent processing and assembly.

• 4. Construction and Decoration Industry

• Metal Curtain Walls: It processes the panels of metal curtain walls, punches decorative holes, installation holes of various shapes, as well as special shapes for realizing the shape of the curtain wall to meet the design requirements of the building's appearance.

• Ceilings: It can process various styles of ceilings, such as punched sound-absorbing ceilings, shaped ceilings, etc. Through the high-precision processing of the punch press, it ensures the flatness of the ceiling and the consistency of the hole patterns, improving the decorative effect.

• 5. Daily Necessities Industry

• Kitchenware: It can process kitchenware made of materials such as stainless steel and aluminum plates, such as the stamping and forming of pots and tableware, and punching out various patterns, designs or anti-slip structures on the surface of the kitchenware.

• Furniture Hardware: It is suitable for processing furniture hardware accessories such as hinges, handles, and casters. Through the stamping process, it realizes the precise forming and mass production of the accessories, improving production efficiency and product quality

三、HRT系列數控高精度轉塔沖床的工作原理如下：

• 動力傳動原理：通過電機驅動飛輪，飛輪儲存能量并在沖壓時釋放，經離合器和傳動機構將動力傳遞到?jīng)_頭。當離合器接合，飛輪帶動曲軸旋轉，曲軸通過連桿使沖頭做上下往復運動，實現沖壓動作。

• 數控系統控制原理：操作人員在數控系統中輸入加工指令，包括沖壓位置、沖壓次數、模具選擇等信息。數控系統依據這些指令，精確控制伺服電機驅動工作臺和轉塔的運動。例如，工作臺在 X、Y 軸方向上的移動由伺服電機通過滾珠絲杠副來實現，能精準定位板材，使沖壓位置符合設計要求；轉塔的旋轉由伺服電機帶動，可快速準確地選擇所需模具。

• 模具工作原理：轉塔沖床的轉塔上安裝有多個不同形狀和尺寸的模具。當需要進行沖壓加工時，數控系統控制轉塔旋轉，將選定的模具對準沖頭。沖頭下行時，模具對板材施加壓力，使板材在模具的作用下產生塑性變形，從而沖剪出所需的形狀和孔型。

• The working principle of the HRT series CNC high-precision turret punch press is as follows:

• Power Transmission Principle

• The flywheel is driven by the motor. The flywheel stores energy and releases it during stamping. The power is transmitted to the punch through the clutch and the transmission mechanism. When the clutch engages, the flywheel drives the crankshaft to rotate. The crankshaft makes the punch move up and down reciprocally through the connecting rod to achieve the stamping action.

• Control Principle of the CNC System

• The operator inputs processing instructions into the CNC system, including information such as stamping positions, the number of stamping times, and mold selection. Based on these instructions, the CNC system precisely controls the movement of the worktable and the turret driven by the servo motor. For example, the movement of the worktable in the X and Y axis directions is realized by the servo motor through the ball screw pair, which can accurately position the sheet metal so that the stamping position meets the design requirements. The rotation of the turret is driven by the servo motor, which can quickly and accurately select the required mold.

• Working Principle of the Mold

• Multiple molds of different shapes and sizes are installed on the turret of the turret punch press. When stamping processing is required, the CNC system controls the rotation of the turret to align the selected mold with the punch. When the punch moves downward, the mold applies pressure to the sheet metal, causing the sheet metal to undergo plastic deformation under the action of the mold, thereby punching out the required shapes and hole patterns

四、HRT系列數控高精度轉塔沖床性能特點：

◆整體式橫梁結構，拖板與橫梁一體化設計，增強剛性，定位準確，高速送料更平穩，杜絕工作臺X、 Y軸動態偏移情況。

IV. Performance Characteristics of the HRT Series CNC High-precision Turret Punch Press:

• The hydraulic system is controlled by a digital proportional servo valve in a full closed-loop mode, featuring high resolution, and the stroke and speed can be adjusted digitally.

• The stamping speed can reach 1000 HPM. It can precisely control the bottom dead center, making it extremely convenient for processing louver windows, knockout holes, rolling beads, roll shearing, embossing, etc.

• The turntable with inserted sleeves and processed in pairs ensures the coaxiality of the upper and lower molds.

• The supporting pneumatic, hydraulic and electrical components ensure the reliability of the overall machine performance.

• The intelligent clamp can automatically move according to the situation of the processed sheet metal, eliminating the dead zone during processing.

• The vacuum waste suction device ensures that the waste falls accurately during high-speed blanking, completely eliminating waste bounce and extending the service life of the mold.

• The large lead ball screw and linear guide ensure the processing accuracy.

• The closed O-shaped body made of welded steel plates has good rigidity and small deformation.

• The automatic protection of the clamp prevents stamping within the protected area, avoiding damage to the mold and clamp and ensuring the continuity of the program operation.

• The rotating station adopts a high-precision turbine and worm mechanism with extremely high indexing accuracy. The maximum diameter is φ88.9 and can be expanded.

• The automatic centralized lubrication device reduces the friction of each moving pair and improves the service life of the machine.

• The integral beam structure, with the design of the carriage integrated with the beam, enhances the rigidity, ensures accurate positioning, makes the high-speed feeding more stable, and eliminates the dynamic offset of the X and Y axes of the worktable

五、HRT系列數控高精度轉塔沖床常用設備的部分技術參數

六、常用設備配置說明

1. 傳動系統

• X/Y 軸：高精度滾珠絲杠 + 直線導軌（C3 級精度）

• 轉塔驅動：伺服電機 + 精密齒輪箱（分度精度≤±5"）

2. 刀庫分布

• 標準工位：φ32mm（常用模具）

• 大工位：φ100 - φ125mm（成型模、拉伸模）

• 旋轉工位：支持 360° 任意角度旋轉（用于切角、百葉窗等）

3. 液壓系統

• 系統壓力：16 - 25MPa

• 油泵流量：20 - 40L/min

• 油箱容量：200 - 400L

4. 電氣系統

• 控制電壓：AC 380V/50Hz

• 控制方式：全閉環控制

• 安全保護：過載保護、光幕保護、緊急停止

5. 可選配置

• 自動上下料系統

• 激光尋邊裝置

• 模具快速更換系統

• 遠程監控系統

VI. Instructions for the Configuration of Common Equipment


• Configuration Instructions

• Transmission System

• X/Y Axis: High-precision ball screw + linear guide (Grade C3 precision)

• Turret Drive: Servo motor + precision gearbox (Indexing accuracy ≤ ±5")

• Tool Magazine Distribution

• Standard Station: φ32mm (Commonly used molds)

• Large Station: φ100 - φ125mm (Forming molds, drawing molds)

• Rotating Station: Supports 360° rotation at any angle (Used for cutting corners, louver windows, etc.)

• Hydraulic System

• System Pressure: 16 - 25MPa

• Oil Pump Flow Rate: 20 - 40L/min

• Oil Tank Capacity: 200 - 400L

• Electrical System

• Control Voltage: AC 380V/50Hz

• Control Mode: Full closed-loop control

• Safety Protection: Overload protection, light curtain protection, emergency stop

• Optional Configurations

• Automatic loading and unloading system

• Laser edge finding device

• Quick mold change system

• Remote monitoring system

• Remarks: The above parameters are typical values, and the actual specifications may vary depending on the manufacturer and model. When selecting a model, customization should be carried out according to specific processing requirements (material thickness, processing accuracy, production efficiency).

Remarks: The above parameters are typical values, and the actual specifications may vary depending on the manufacturer and model. When selecting a model, customization is required according to specific processing requirements (material thickness, processing accuracy, production efficiency)。
